Stephen Bell MKI Escort Cosworth YB N/A

[Belly]

Danny how come you didn't go Bigger on the trailer, they mite not be bigger enought for it with your driving

Belly

[Danny M]

They were cheaper than the ones at the trailer wholesaler and I got 4 of them
I'm thing that if it's not big enough I'll get the Brembo option when I buy a new ute next year



Danny

[Danny M]

[Belly]

Yes I have the new ones coming and also the new pipercross filter, as the one he supplied wasn't long enough

going shopping next week for M400 and more bits

will try and get it going for Gatton Sprints

Belly

[Lincoln]

Het mate - as said on the convo....

Get a 2wd, 4wd standard cosworth distributor, knock the pin out and seperate and linish off one of the triggers.... if your ecu will read a reluctance (or magnetic as it is also called) sensor for a cam trigger.

Or.

Get a EECIV phase sensor assembly from a small turbo escort cosworth - this replaces the distributor entirely.... it is a hall effect sensor and i think plugs are very hard to find - you may need a butcher a bit off a EECIV loom.

I have a few photo's of the EECIV sensor if you need...

[Belly]

Thanks Lincoln for the info and help, yes if you could send throught the photo's that would help

Cheers Belly

[Belly]

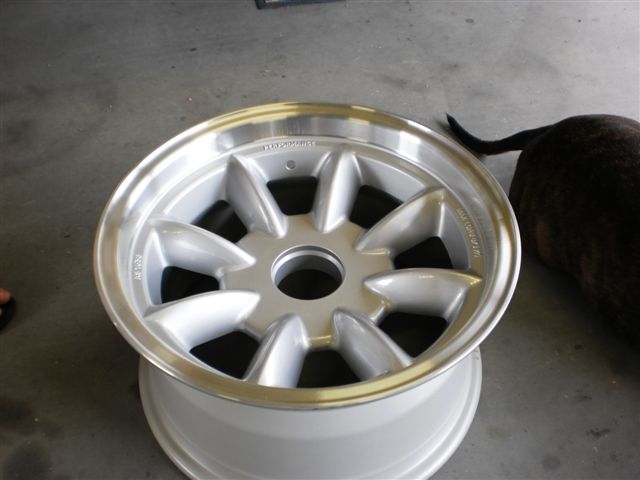

Santa came over Xmas

[Belly]

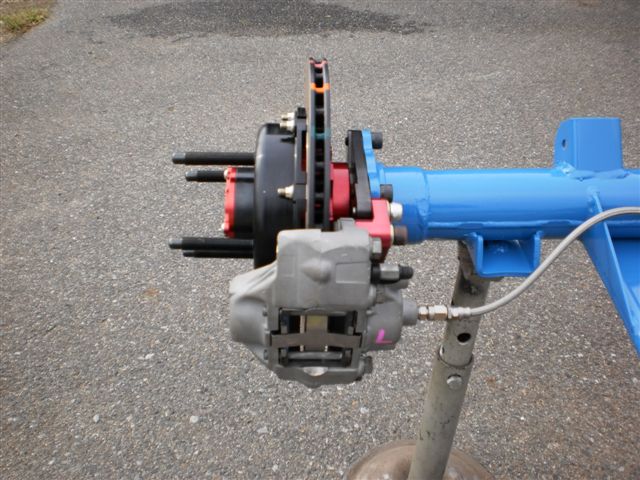

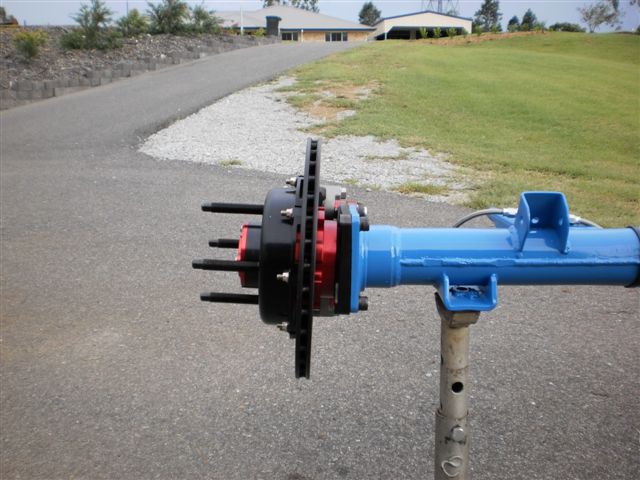

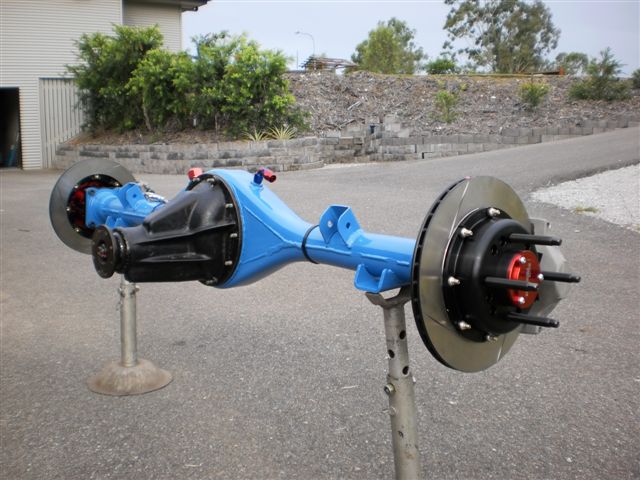

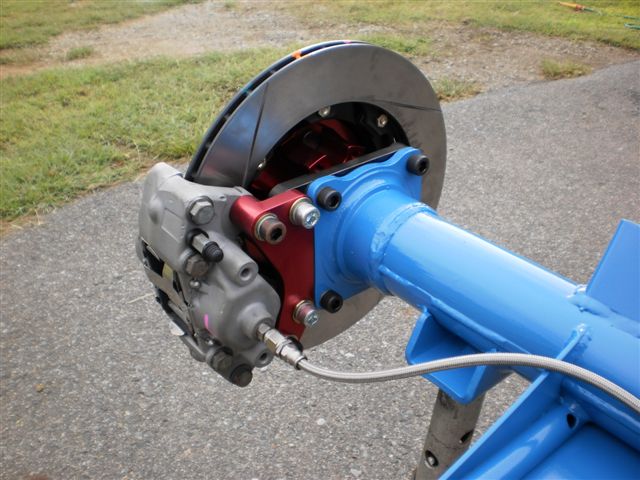

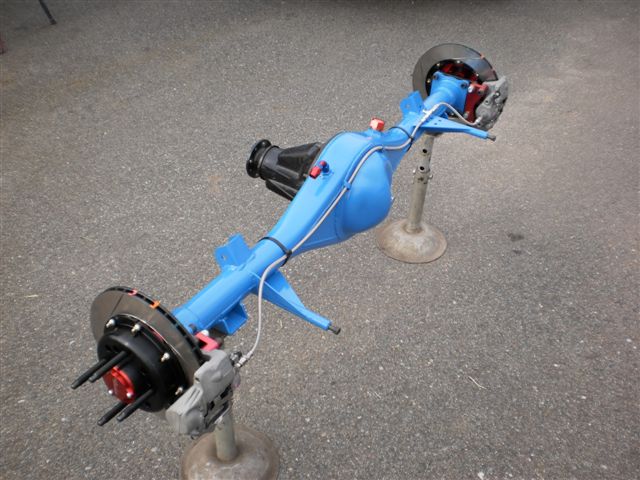

Diff completed

[Belly]

more photos

[PaulMK1]

I'm jealous!

[MK1_Oz]

I see you have a diff breather connection. How important is one on a competition car? My Eurospeed Hilux diff just has a standard looking breather cap. Not sure if it will be adequate?

[Belly]

it should have a breather as it holds 4 ltrs of oil now, i will run a hose into the boot with a breather bottle
maybe a 1/2 ltrs bottle and a small filter on top should be heaps I think

I had a mate with a Datsun and standard diff at QR and it spat oil out he then put a larger breather on and all good now

Belly

[Danny M]

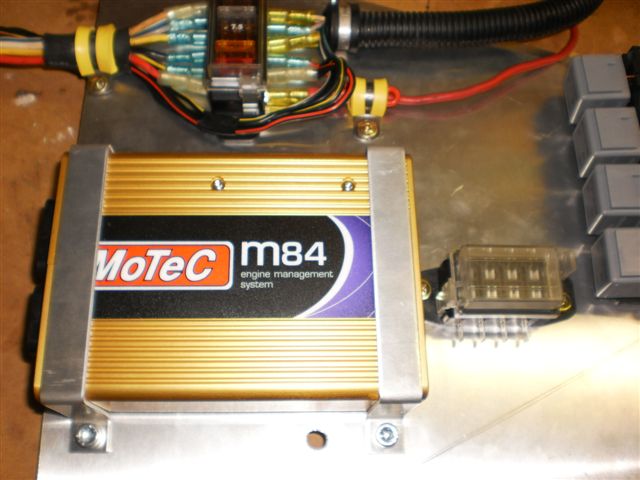

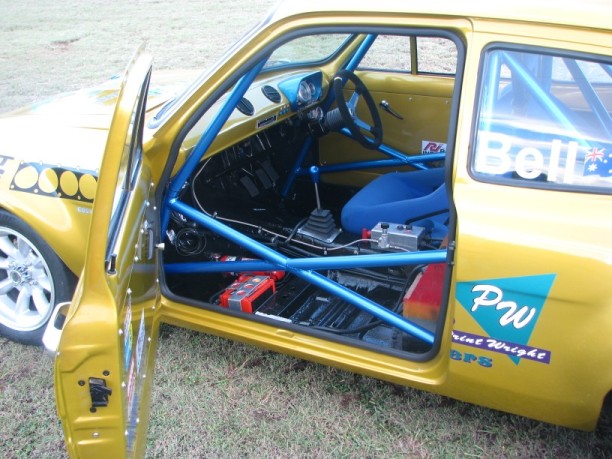

Steve whats with the wiring you're not wiring up a Cat dozer!
Flick the alloy straps for the Motec and stick it on with Velcro so you can take it out for security



Danny

[Belly]

the straps are opional and the wiring is just the brake and head lights Ect and i have used most of the old wiring for this, I have the Motec Harness for the engine still to be wired

Belly

[Belly]

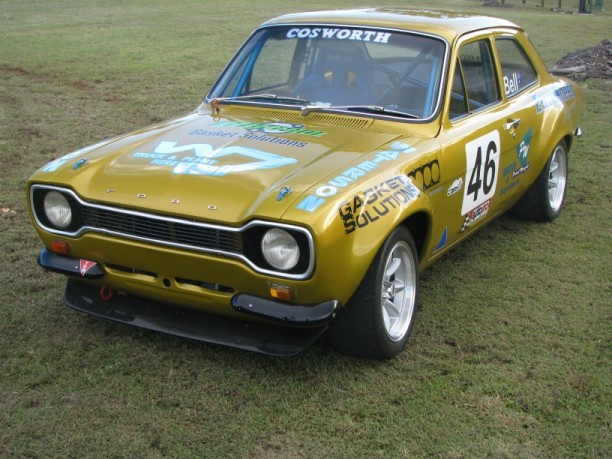

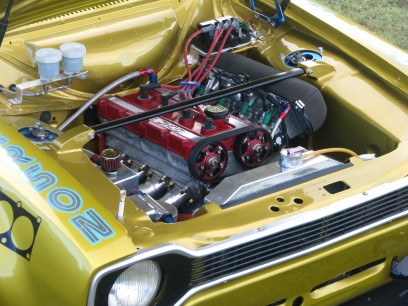

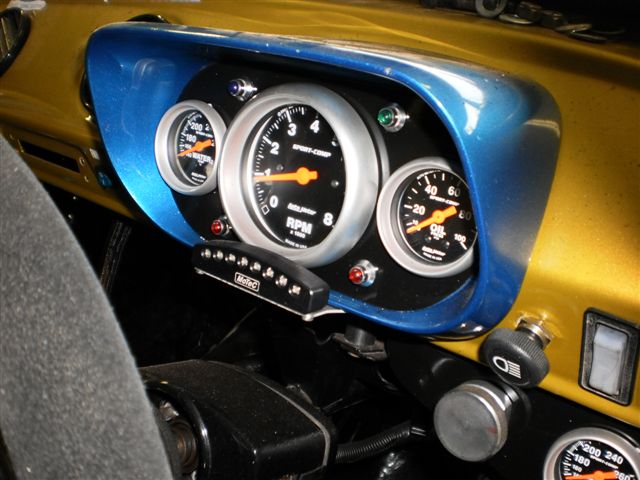

OK all finished now and ready to run, all run in and dyno completed thanks to Paul at Motec QLD, after getting it home we went down to the local drag strip and put some cones up in the braking area to make some corners and did 31 min of logging and distroyed a rear set of tyre what fun it is to drive now heaps of power and responce with the injection, I would like to thank Danny for all his help and also Geoff at Eurospeed, I have learnt do it right the first time, just have to wait for Maryborough Sprints and may turn some wheels at Lakeside on the 15th May (going down for the sponsers display)

[Belly]

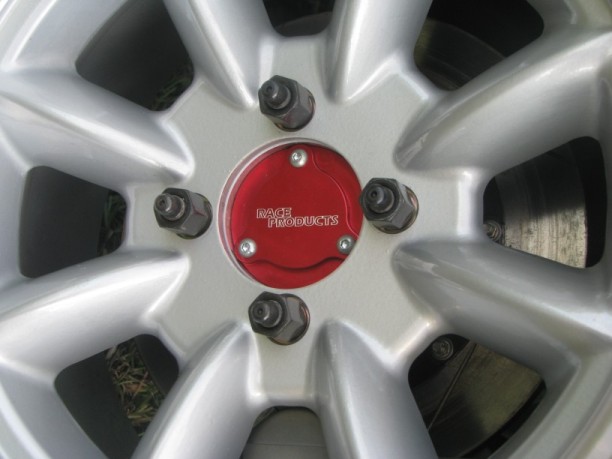

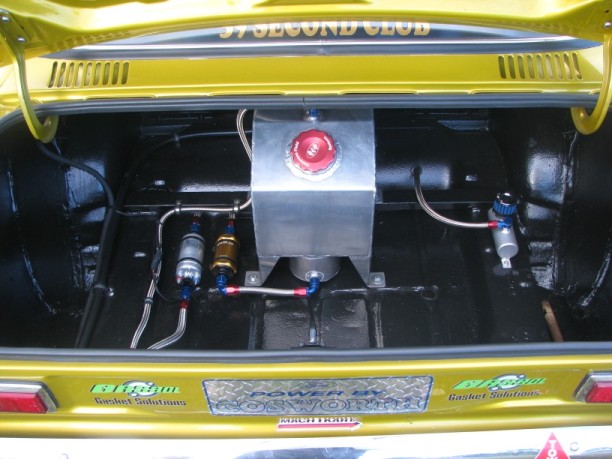

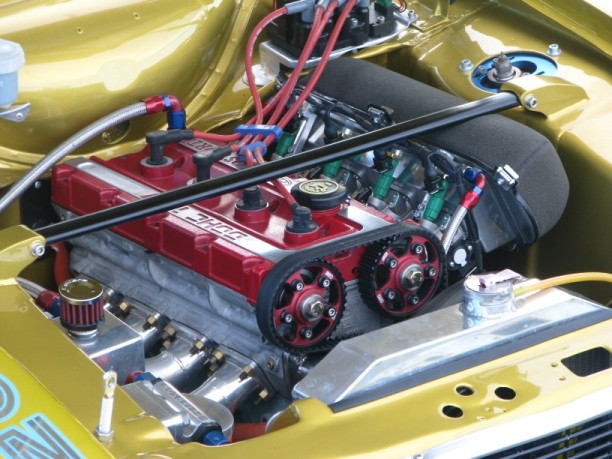

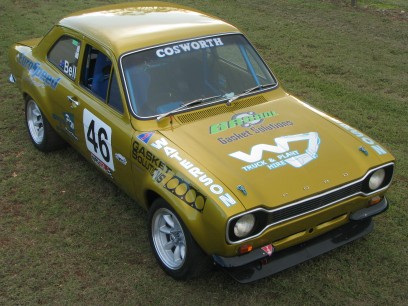

Some more photos

[ratta tat tat]

[SportsSedanSteve]

I was wondering what gearbox and ratio's your using. My YB rebuild is getting to dummy build stage and I need to start planning/sourcing a gear box as my next step.

[Cam]

Bugger me, that's nice!!

[Belly]

Hey Steve, just running a T9 Clubman Box Straight cut 2.39 first, will be going to a dog box, as the clubman will not handle the power they are ok if you don't turn them hard, I just have to baby it for some time until I get the new one

Belly
