Scott D's next MK1 Escort Project

[ozstang65]

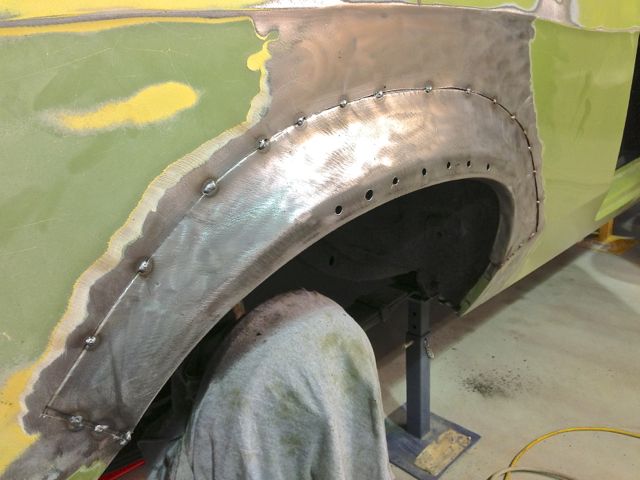

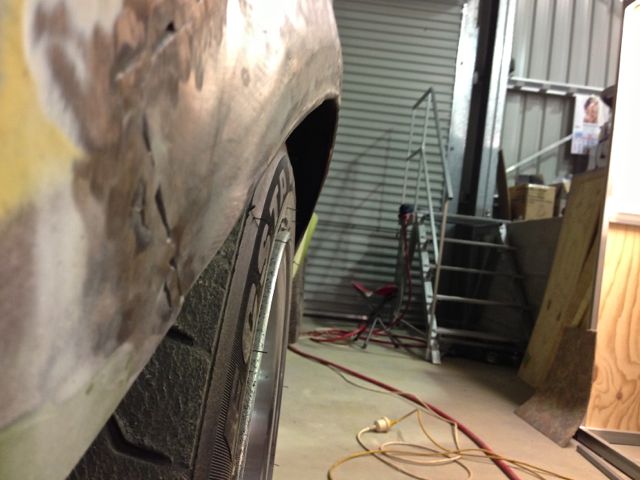

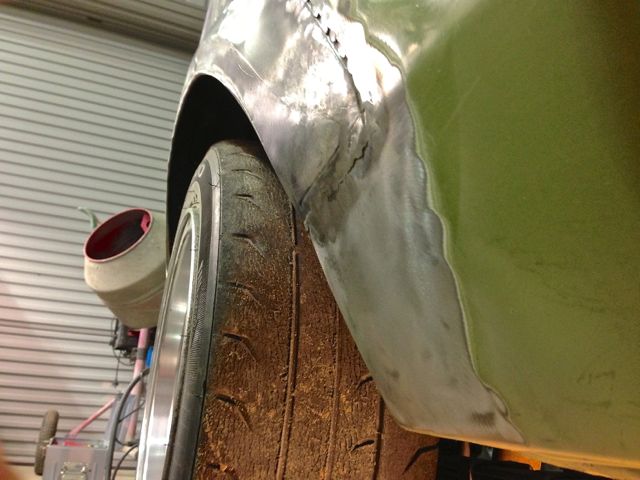

A little more progress thisarvo. The inner guard needed splitting to allow it to be pushed out enough to match up with the new flare.


A couple of holes will allow me to plug weld the inner guard. Finish it off tomorrow hopefully.


[gen mk 1rs2000]

to flare the gaurds its much quicker to place a large plastic garbage bag
on top of the tyre in the wheelarch area then inflate the bag with a nice
mixture of Oxygen & Acetalene gas then lay a long trail of petrol from
the bag to a good safe distance then ignite the petrol trail
BOOM baby now you have instantly flared gaurds
so simple , cheap , fast & good fun too

[ozstang65]

I'll give that a shot Steve, I'll be around next week to try it out on yours first though!

Anyway, I don't have an oxy set so i just had to do it the old fashioned way. All welded in now and ready for a skim of filler to finish it off. Time for the other side soon..





[jpayne]

Always turns into a bigger job than expected...Deadline????

Will be worth it in the end. Well done too

JP

[Neville Bertwistle]

Nothing like a tight deadline to get you focused

Good work though Scott - keep it up!

[ozstang65]

Thanks guys, I did the same thing this time last year with the front end! I'd like to try some wider tyres so the rear needed to be flared out as the 175's were already rubbing. A tight deadline is sometimes the only way I get things done on this car anyway. It won't be a show paint job either, good enough for a racecar though. I can finally stop writing 'multi shades of green' on my entry forms as well...

Hopefully the other side goes a bit quicker




August 31st is my next event so i really need to have it painted by next sunday..

[jpayne]

looks OK

Get to the other side!

JP

[ozstang65]

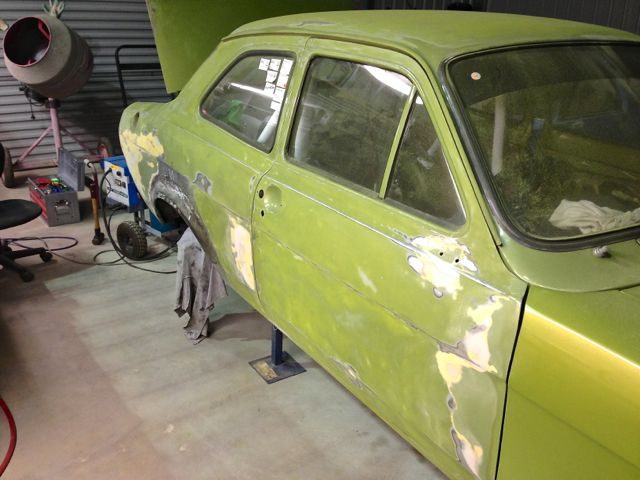

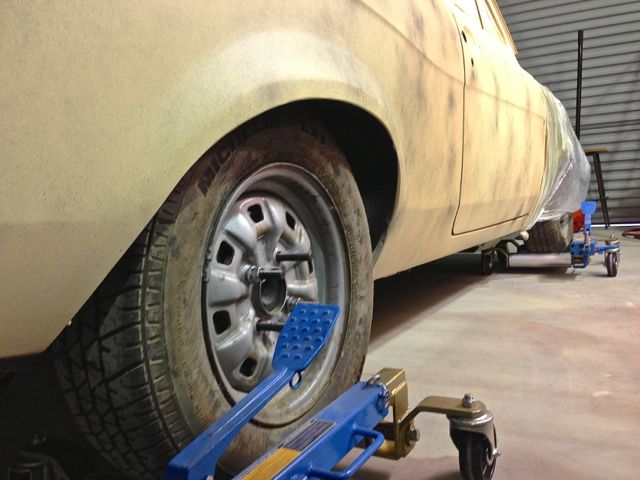

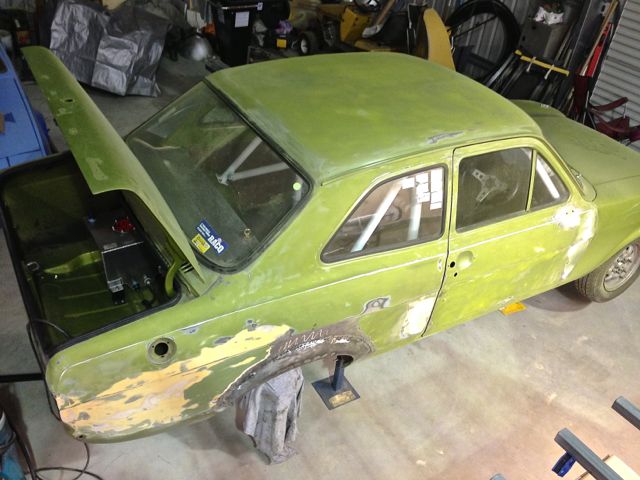

...and because my shed really does have a 'dark side' I needed to spin the car around to see what i was doing down the left side. Original wheels look a bit skinny now.

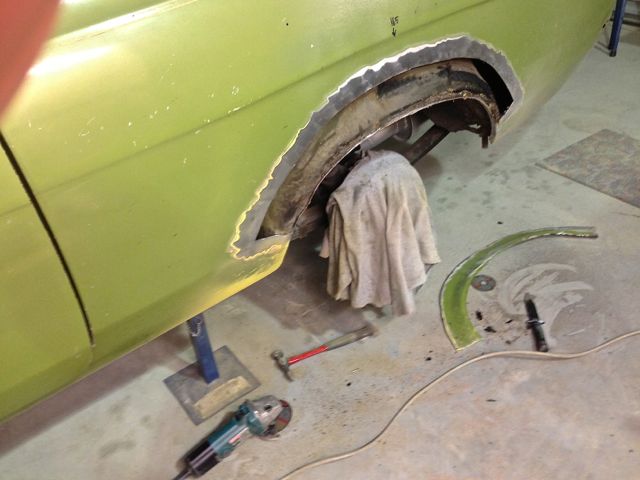

this side should be a breeze, I copied the finished flare outline before i welded it in the other side so it was a simple case of trace around and cut the hole. Then I ran out of day. again..


Safety first....


[ozstang65]

A little more progress over the last 2 nights.

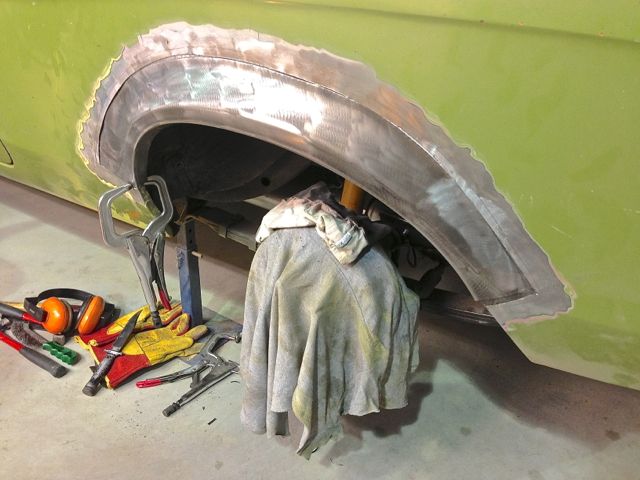

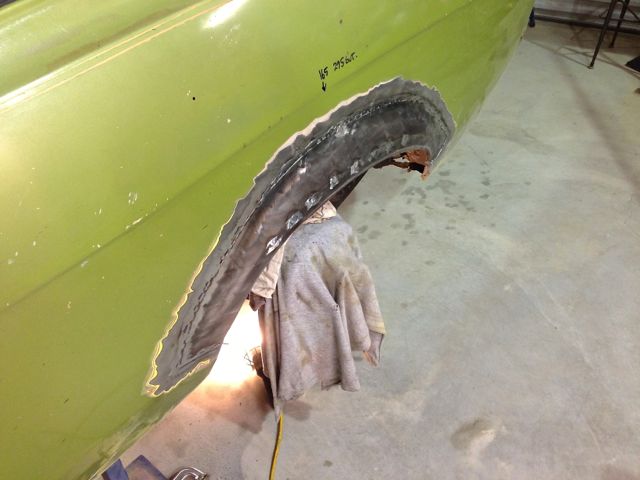

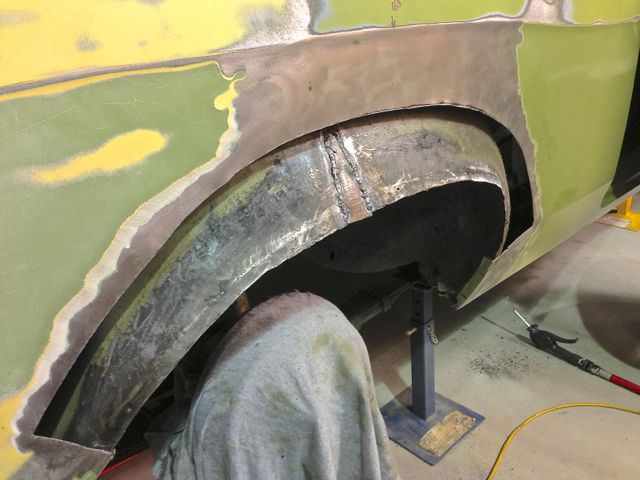

Tidied up the cutout, expanded the inner guard and fitup of the new flare.


All welded in ready for a bit of filler. Hope to get friday off work to get stuck into finishing it off. Fully undercoated by saturday and the finish layers on Sunday (all things good... )


[ozstang65]

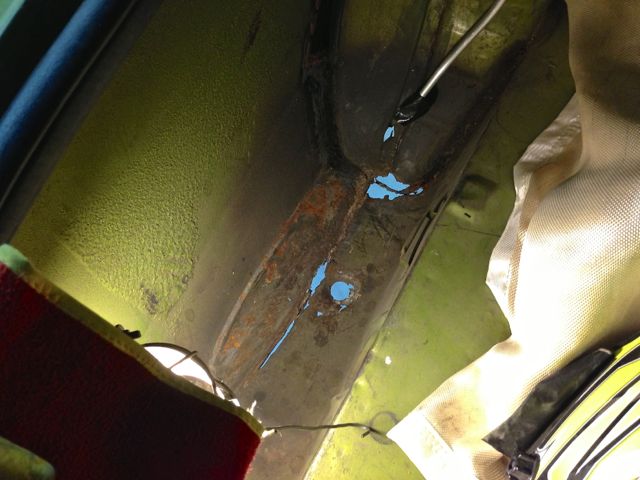

This is pretty much the extent of the rust in the entire car, so i'd better fix it now with the rest of the job.



[ozstang65]

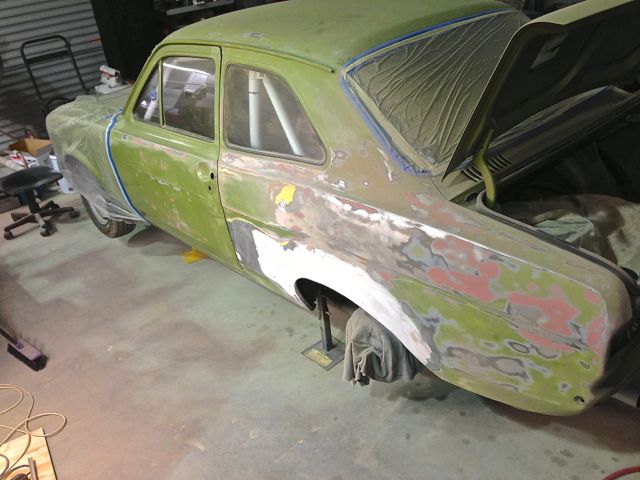

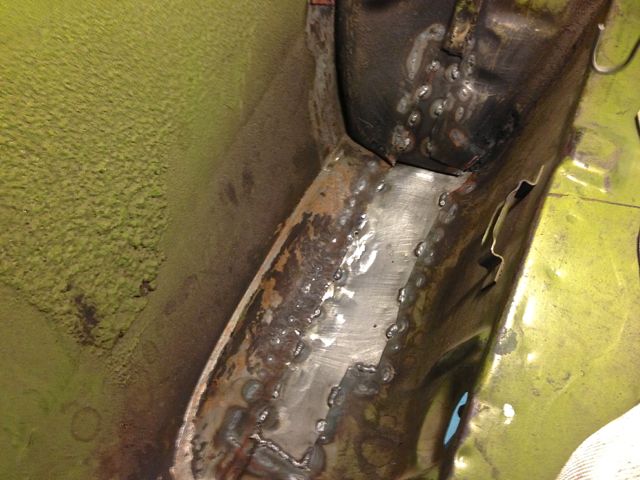

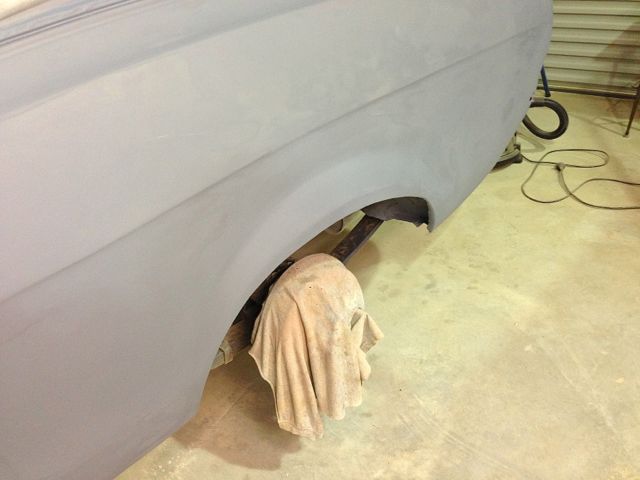

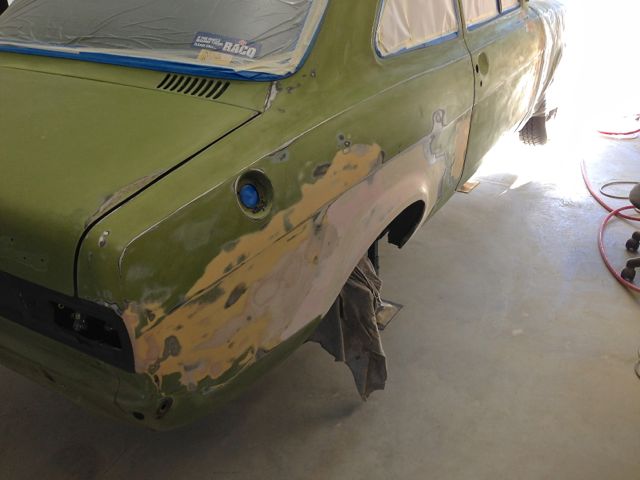

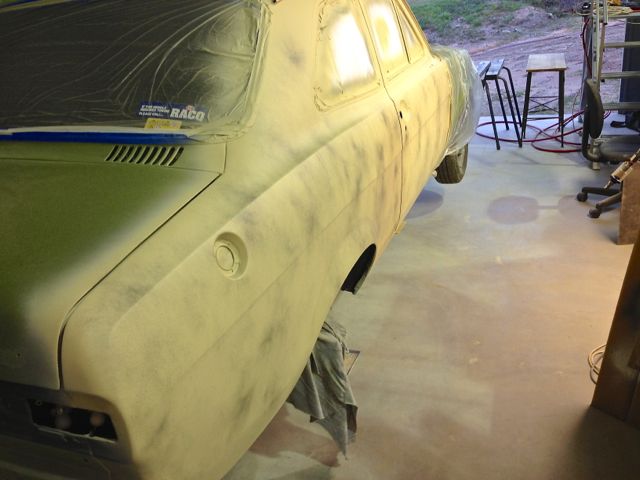

...all fixed now, filler work on the guard almost finished and then just the sanding to go.




[ozstang65]

It's been raining all day and I probably shouldn't have even painted the etch...




So it's put my schedule back at least a day so it's looking less likely that i'll be ready for Lakeside. Might have to ask dad if he wants me to blow the cobwebs out of his car...

[jpayne]

drive it in undercoat...


JP

[ozstang65]

Wouldn't be the first time I've driven it 'uncomplete'

There's still a few more afternoons left this week, might make it yet..


[ozstang65]

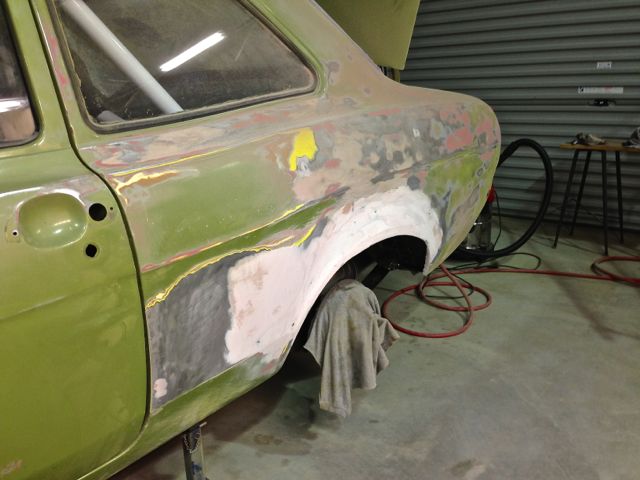

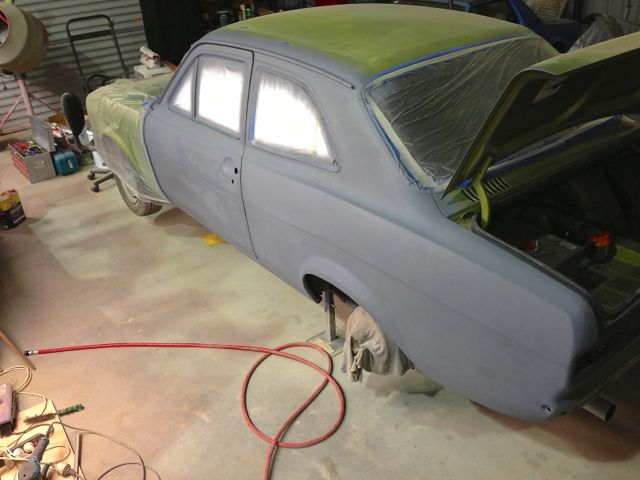

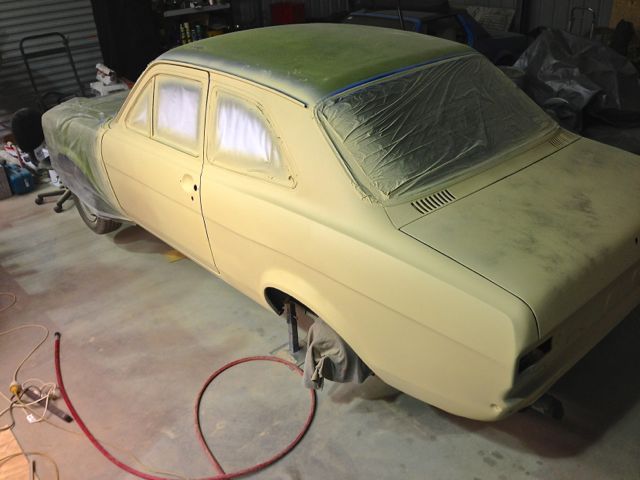

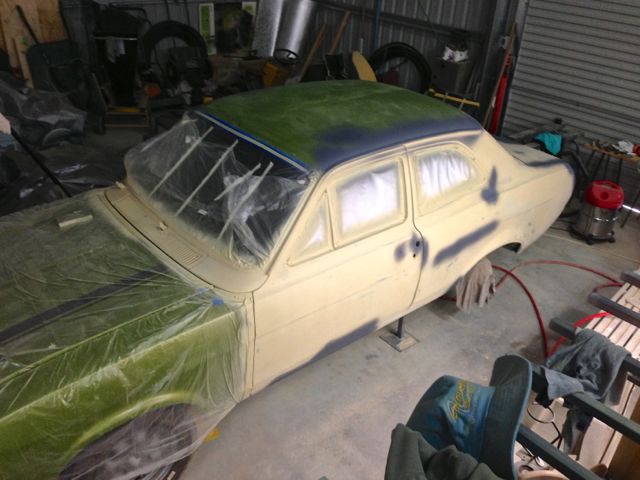

at the start of thisevening...

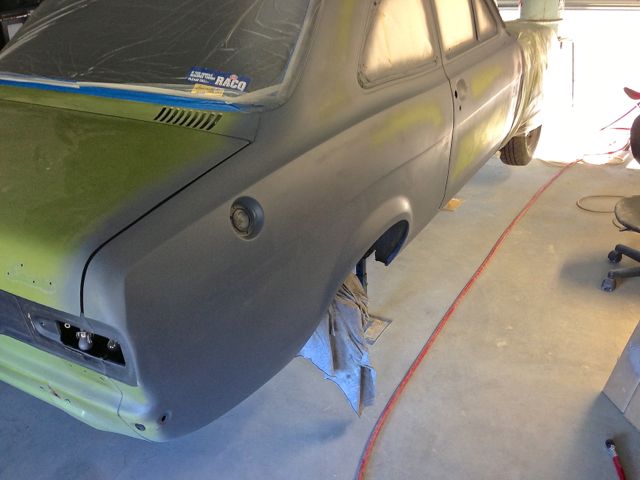

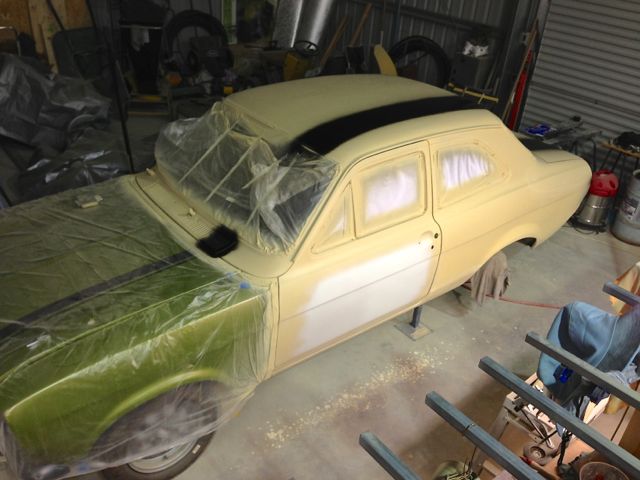

and now...



a bit more sanding/masking then paint tomoorow after work, assembly Saturday, track Sunday, sleep Monday...

[wayovermyhead]

Your an animal. Hope you make it in time.

[jpayne]

leave time for your spanner check!!!!

Getting close though.well done

JP

[MK1_Oz]

In my experience you can get away with finishing an hour before an event!!

[jpayne]

Ive had hose fittings still being attached, tightened and bled in the dummy grid after a between heat rebuild/flush! Track marshall's don't like it much! nor did the poor driver, Me!

JP

[ozstang65]

Thanks guys! The car's mechanically ready to go, about the only plans are to switch to the 7 plugs from the 6's that i run in it at the hillclimbs. It ran at Noosa a few weeks ago without any problems.

Paintwise, it's done. Bloody rough, but good enough for the track.

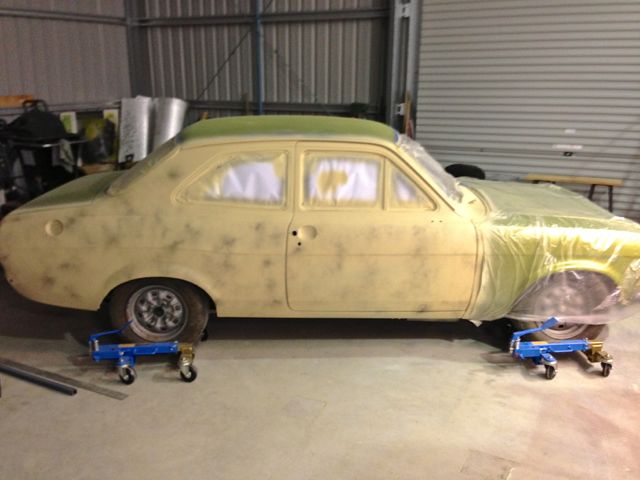

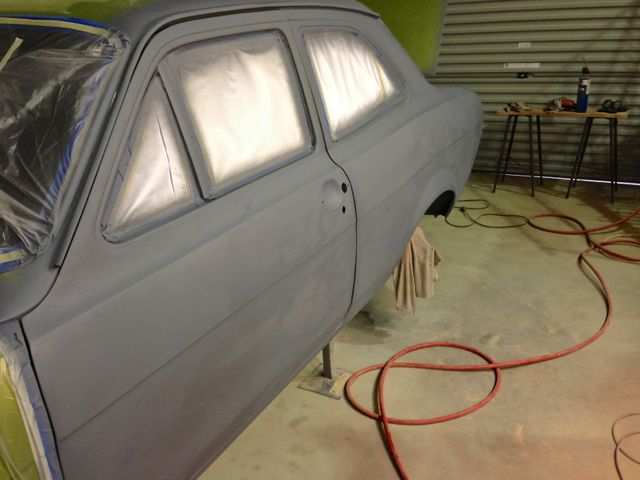

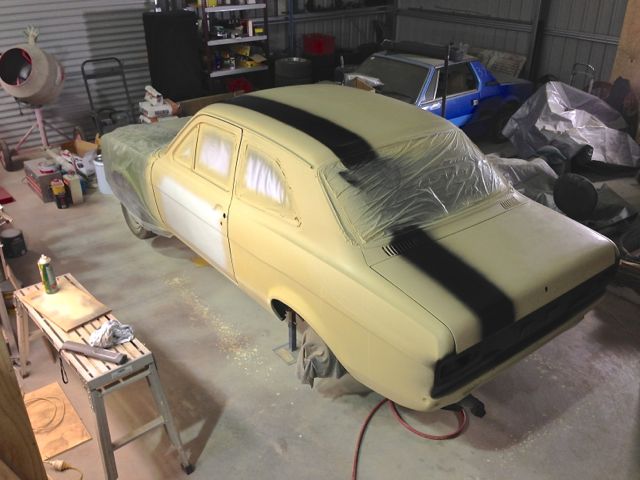

Wrapped up and ready for paint..


Care for a drink?


I really need a spray booth before my next paint project...

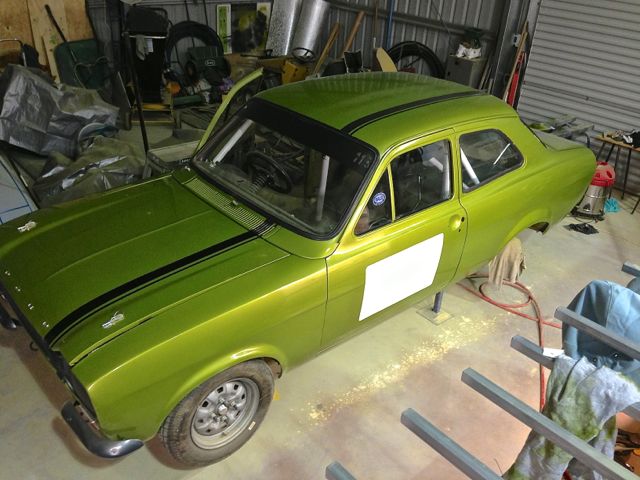

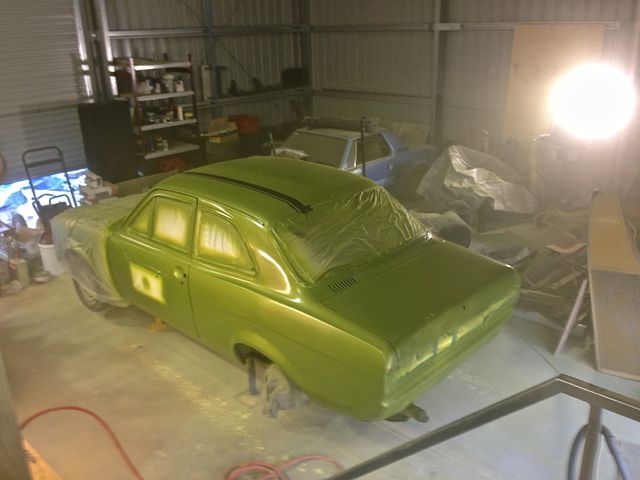

Done. Now to clean up and put it all back together.
