For anyone in Brisbane, I can highly recommend Advanced Trailer Spares for cables. They can reproduce factory cables, or if you take 2 ends and give them a length they can make just about anything. I've had cables made to adapt EB Falcon calipers on the rear of my '65 Mustang to an EF Falcon handbrake lever. The calipers look very similar to the R31's. They also made a replacement for my X1/9.
Not cheap, but never any problems.
Paul's white 2dr RS
Moderator: Moderators
34 posts
• Page 2 of 2 • 1, 2
-
Damion Parkin - Open - C4 License
- Posts: 347
- Joined: Sat Jun 03, 2006 10:36 am
- Location: Brisbane / Toowoomba, QLD
by Paul Dunstan » Sat Sep 12, 2009 10:09 pm
- Attachments
-

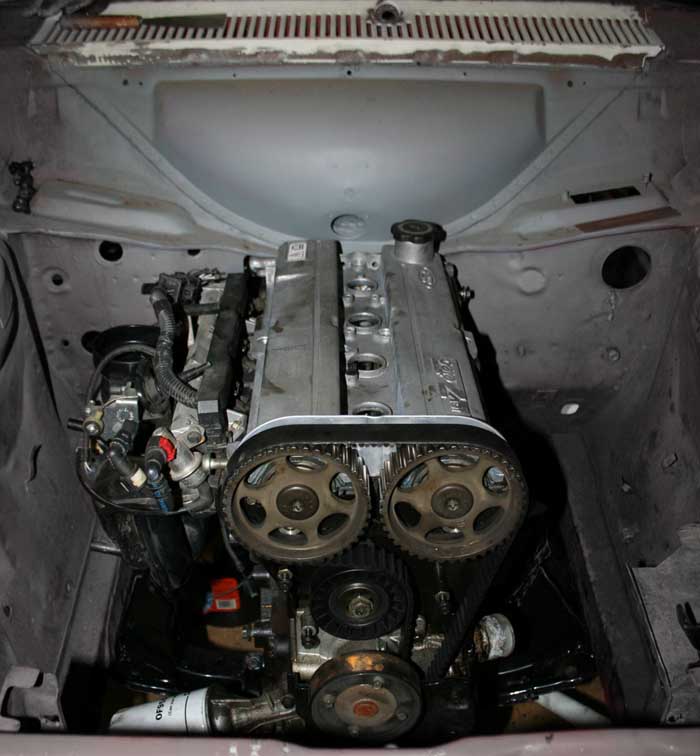

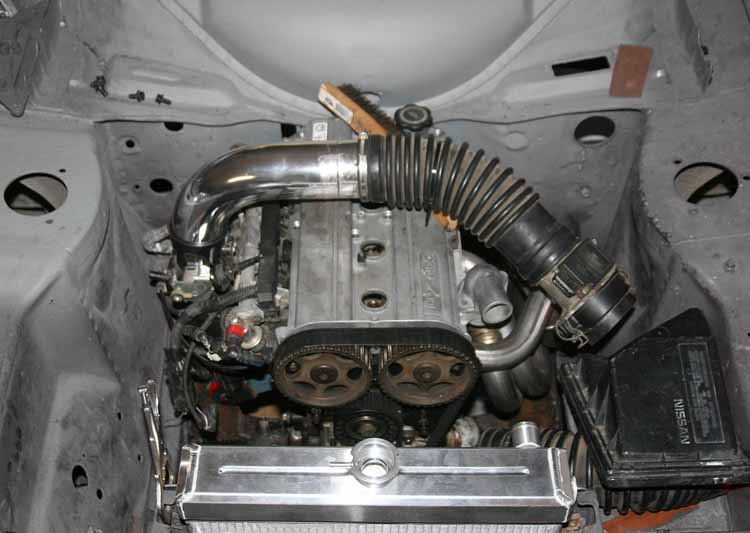

- In position - it is sitting slightly to the passenger side due to the inlet fouling on the xmember.
- Zetec front.jpg (73.22 KiB) Viewed 8778 times
-

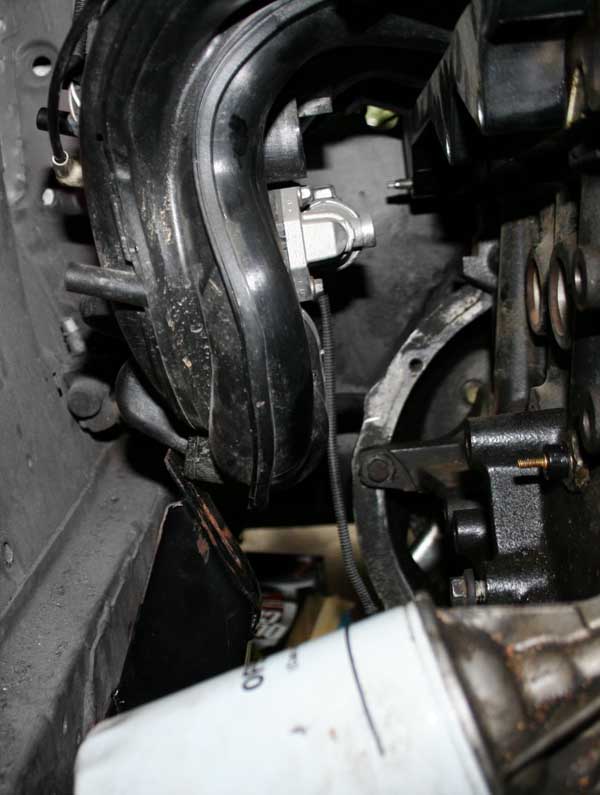

- Bugger!!!!!!
- Inlet fouling.jpg (66.4 KiB) Viewed 8778 times
-

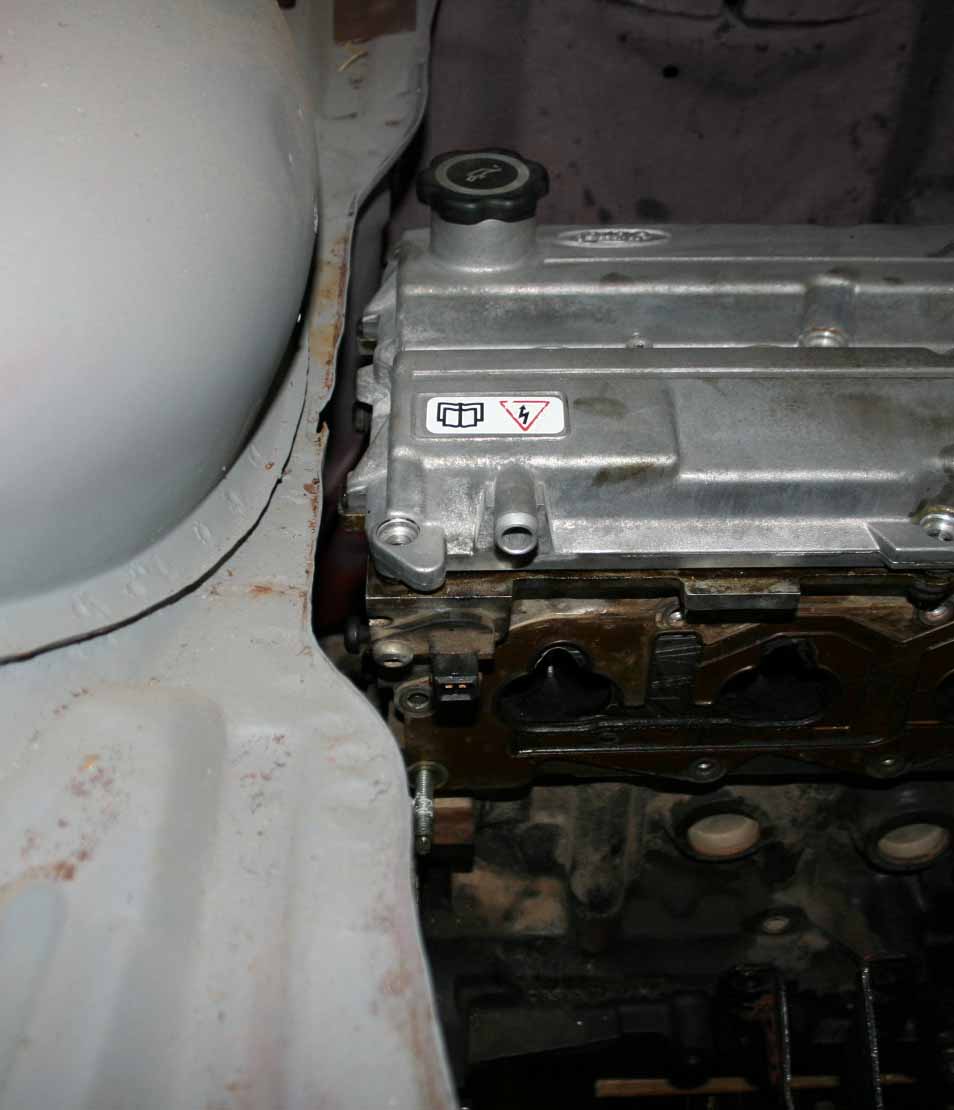

- Engine moved 15mm forward compared to the Pinto. Adequate room from the lip and to accomodate the Raceline water-rail.
- Head room.jpg (69.27 KiB) Viewed 8778 times
-
- Shifter opening to raise and re-position.
- Gearbox shifter position.jpg (70.47 KiB) Viewed 8778 times
Last edited by Paul Dunstan on Sat Sep 12, 2009 10:27 pm, edited 2 times in total.
Cheers
Paul
Paul
- Paul Dunstan
- Open - C4 License
- Posts: 262
- Joined: Thu May 25, 2006 10:00 am
- Location: Adelaide
by Paul Dunstan » Sat Sep 12, 2009 10:20 pm
- Attachments
-

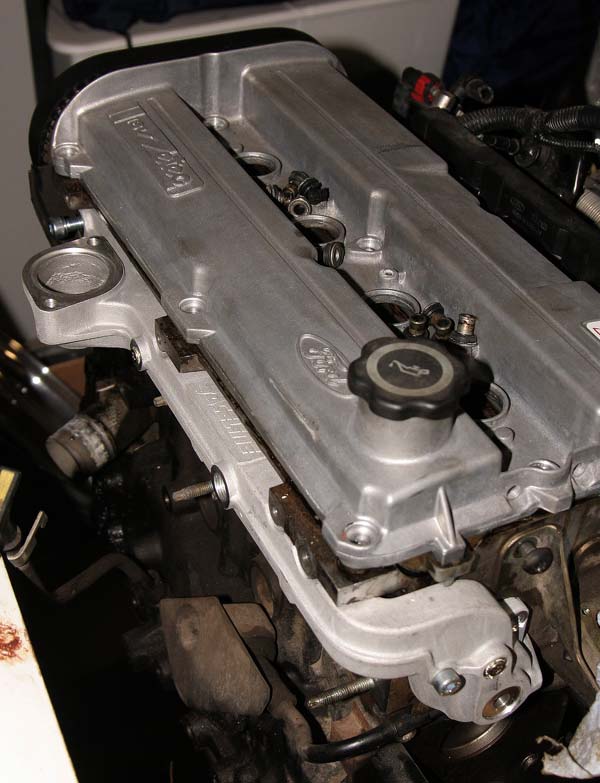

- Raceline water-rail
- Water rail small.jpg (82.48 KiB) Viewed 8775 times
-

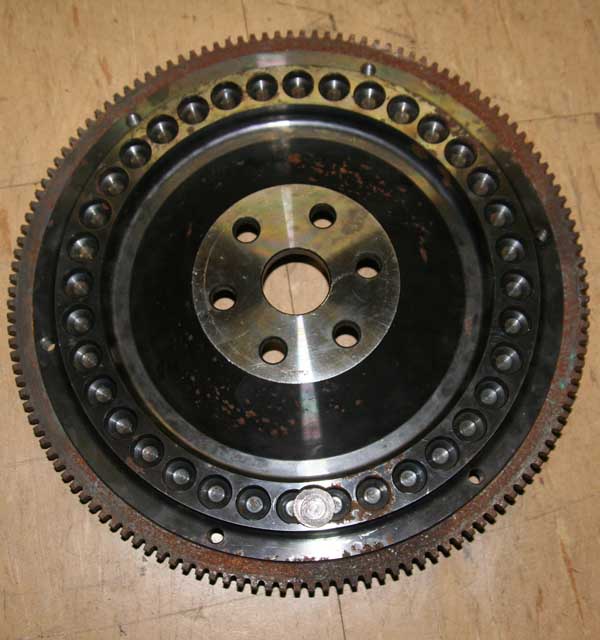

- Lightweight Raceline steel flywheel - will allow the original clutch and starter motor to bolt straight up!
- Raceline steel flywheel.jpg (69.54 KiB) Viewed 8775 times
-

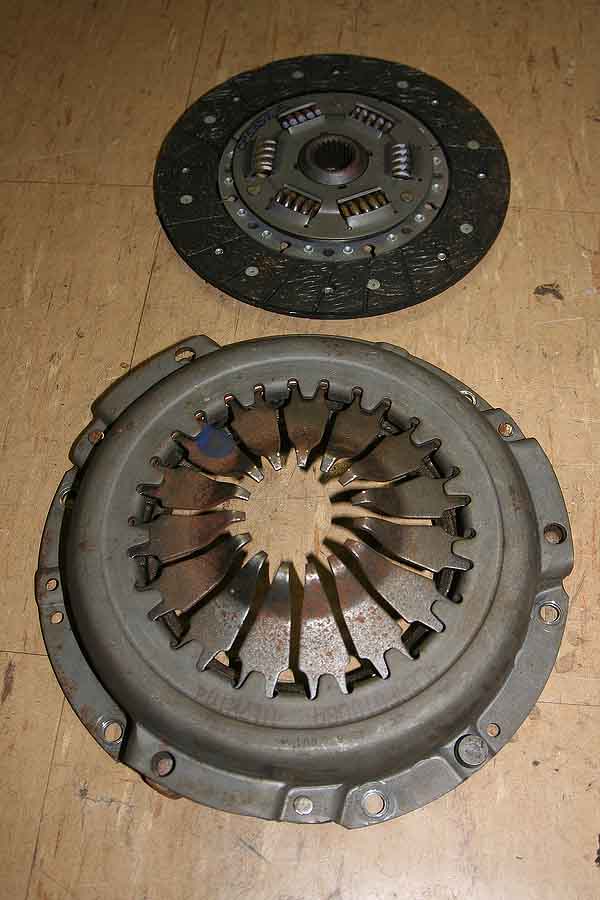

- Raceline HD clutch to suit.
- Raceline HD clutch.jpg (62.87 KiB) Viewed 8775 times
Cheers
Paul
Paul
- Paul Dunstan
- Open - C4 License
- Posts: 262
- Joined: Thu May 25, 2006 10:00 am
- Location: Adelaide
Re: Paul's white 2dr RS
by Paul Dunstan » Fri Jan 13, 2012 6:13 pm
Whoa - it's been a while since an update - although no great advancements have been made
Engine is in and my custom WCXM basically finished and I'm finalising the trans mount.
I still have a fair bit of rust to sort out before I can haggle someone to paint it.
I have finished my pedal box
Engine is in and my custom WCXM basically finished and I'm finalising the trans mount.
I still have a fair bit of rust to sort out before I can haggle someone to paint it.
I have finished my pedal box
- Attachments
-
- As I need to use the OEM inlet, ECU and sensors this is my proposed inlet configuration.
- Intake top.jpg (58.68 KiB) Viewed 8654 times
-
- Custom made WCXM LHS - just need to finsih welding once the engine comes out.
- LHS mount fitted.jpg (61.08 KiB) Viewed 8654 times
-
- Custom made WCXM RHS - just needs final welding.
- RHS mount fitted.jpg (68.83 KiB) Viewed 8654 times
-
- Decided to make my own bias pedal box as the quality and price varied substantially.
- Tilton mounted.jpg (73.64 KiB) Viewed 8654 times
Cheers
Paul
Paul
- Paul Dunstan
- Open - C4 License
- Posts: 262
- Joined: Thu May 25, 2006 10:00 am
- Location: Adelaide
Re: Paul's white 2dr RS
by Paul Dunstan » Fri Jan 13, 2012 6:19 pm
A few images of the rust section I've tackled - still more to do!
- Attachments
-

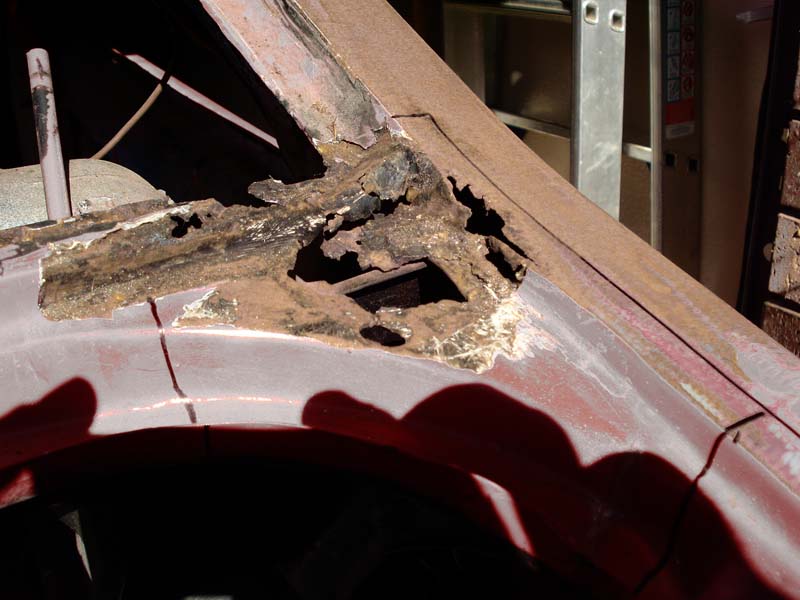

- Looks nasty!
- RHS boot recess before.jpg (79.03 KiB) Viewed 8653 times
-
- Replacement panel unstitched and then cut to suit - ready to weld.
- RHS boot recess replacement 2.jpg (80.4 KiB) Viewed 8653 times
-
- Almost complete
- Final section.jpg (71.32 KiB) Viewed 8653 times
-
- Primed.
- almost completed - Primed.jpg (66.02 KiB) Viewed 8653 times
Cheers
Paul
Paul
- Paul Dunstan
- Open - C4 License
- Posts: 262
- Joined: Thu May 25, 2006 10:00 am
- Location: Adelaide
Re: Paul's white 2dr RS
by Paul Dunstan » Fri Jan 13, 2012 6:31 pm
I also decided to get some engine bits ready for the day I catually need them
EFI Hardware 40-45mm tapered throttle bodies (once I get past engineering
)
JE Forged 11:1 pistons + Eagle rods
Supertech 1mm OS valves (currently going into the new head)

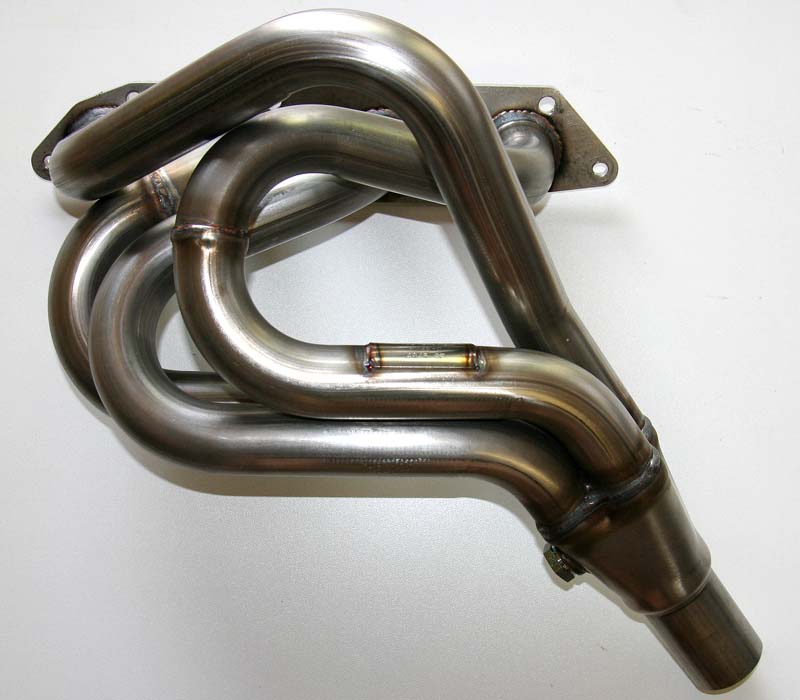

4-1 SS headers from the UK (OK I have had these for a while).
EFI Hardware 40-45mm tapered throttle bodies (once I get past engineering
)JE Forged 11:1 pistons + Eagle rods

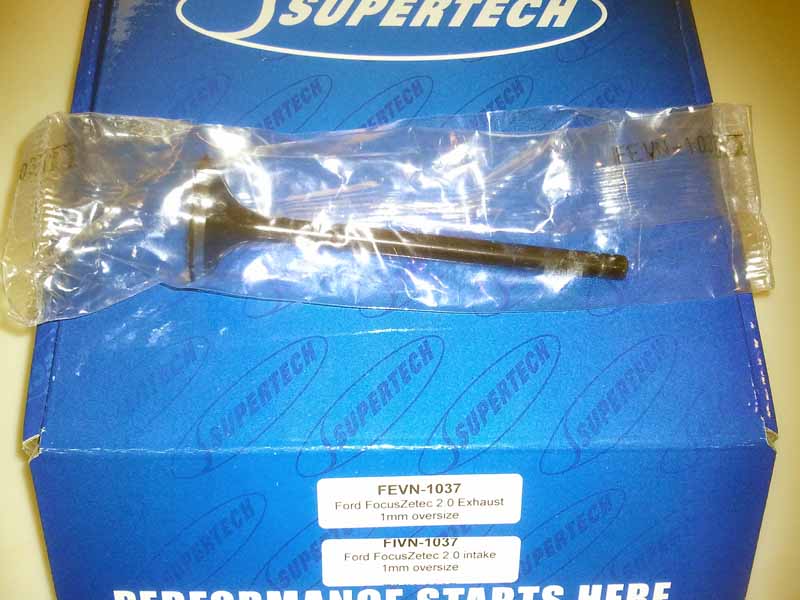

Supertech 1mm OS valves (currently going into the new head)
4-1 SS headers from the UK (OK I have had these for a while).
- Attachments
-
- EFI HardawareTBs.jpg (75.18 KiB) Viewed 8651 times
-
- JE Piston top.jpg (64.7 KiB) Viewed 8651 times
-
- Supertech valves.jpg (79.47 KiB) Viewed 8651 times
-
- Headers side.jpg (68.52 KiB) Viewed 8651 times
Cheers
Paul
Paul
- Paul Dunstan
- Open - C4 License
- Posts: 262
- Joined: Thu May 25, 2006 10:00 am
- Location: Adelaide
Re: Paul's white 2dr RS
by MK1_Oz » Fri Jan 13, 2012 7:55 pm
STILL looking forward to seeing this out and about
1970 Mk1 Escort Tarmac Rally Car
Supported By:
Frank Reed Conveyancing
Loving Wife
Supported By:
Frank Reed Conveyancing
Loving Wife
- MK1_Oz
- Seasoned Racer
- Posts: 1655
- Joined: Tue Dec 02, 2008 4:05 pm
- Location: Adelaide
Re: Paul's white 2dr RS
by krt10 » Mon Jan 23, 2012 9:52 pm
liking this build mate. would love to see it in the flesh when its done
- krt10
- P Plater - C3 License
- Posts: 54
- Joined: Wed Aug 13, 2008 5:57 pm
- Location: SA
Re: Paul's white 2dr RS
by Paul Dunstan » Sat Jan 28, 2012 3:04 pm
Hi All
I have built my own cable clutch pedal box and I have also added the hydraulic clutch variant.
If anyone is intereseted in one on an exchange basis then let me know.
They come supplied with;
Nodified OEM pedal box shell.
Modified OEM brake pedal.
Tilton 7/16 bias bar assembly.
Modified OEM clutch pedal (if applicable).
All zinc plated.
Image below (M/C not included).
I have built my own cable clutch pedal box and I have also added the hydraulic clutch variant.
If anyone is intereseted in one on an exchange basis then let me know.
They come supplied with;
Nodified OEM pedal box shell.
Modified OEM brake pedal.
Tilton 7/16 bias bar assembly.
Modified OEM clutch pedal (if applicable).
All zinc plated.
Image below (M/C not included).
- Attachments
-

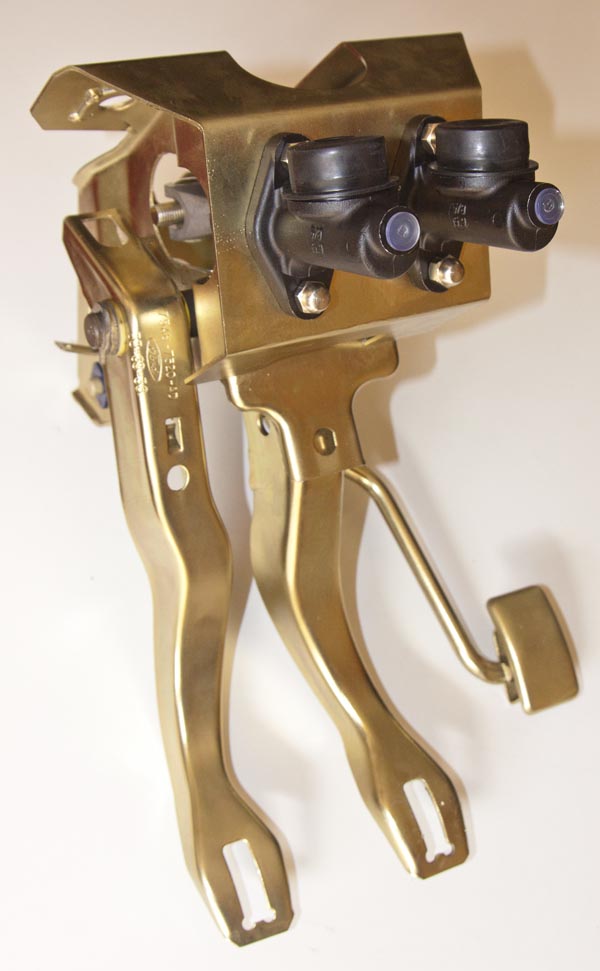

- Pedal box - Cable clutch
- Pedal+box+front+left.jpg (70.82 KiB) Viewed 8480 times
Cheers
Paul
Paul
- Paul Dunstan
- Open - C4 License
- Posts: 262
- Joined: Thu May 25, 2006 10:00 am
- Location: Adelaide
