Stephen Bell MKI Escort Cosworth YB N/A

[Belly]

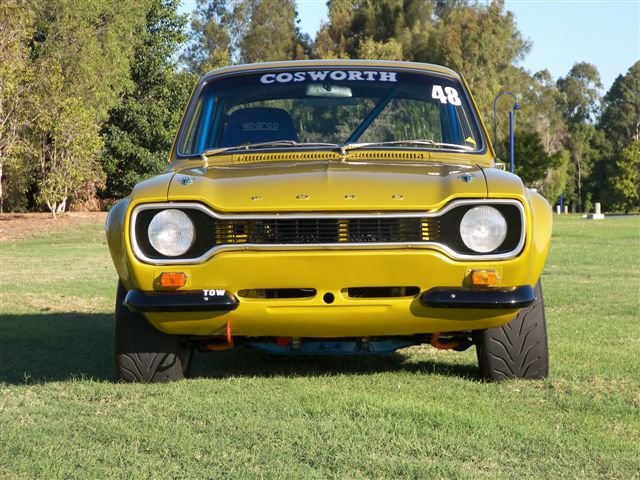

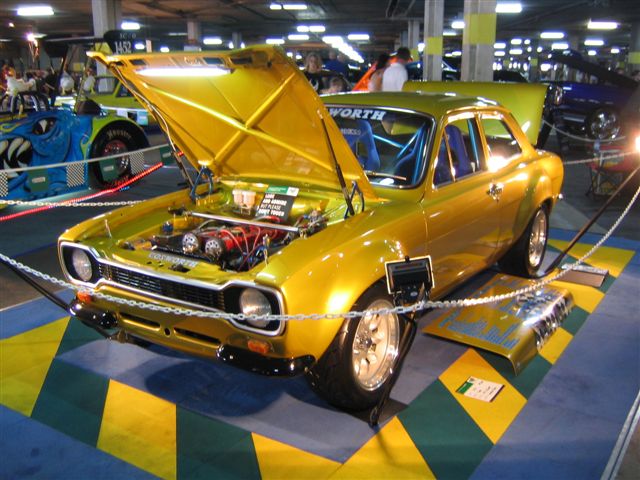

Here is some more info on the car
and i will add some more photo's soon

Belly

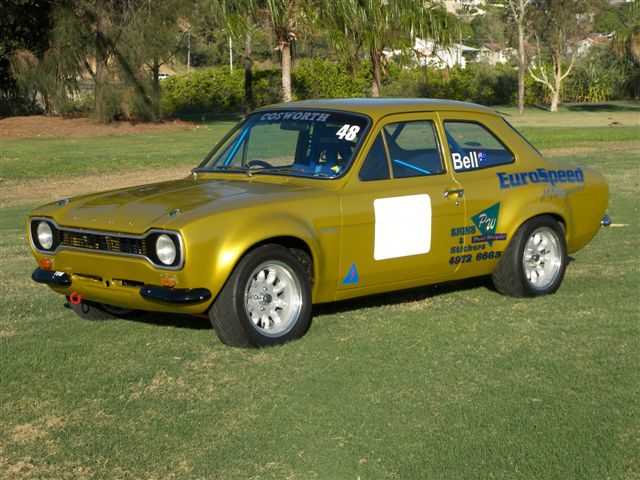

1970 Model MKI Ford Escort

Engine: COSWORTH 2ltr, 16V Twin Cam

Bottom End:
• 205 Sierra Block
• Offset Ground crank (to keep it under 2000cc)
• Datsun L16 Rods
• CP Racing Pistons
• Mellings HP oil pump (with Peterson External Pressure Relief Block)
• Romac Harmonic Balancer
• Datsun L300 water pump pulley
• Hi Volume Custom Sump
PWR Radiator, Speed flow fitting, remote filter housing-peterson


Head:
• BIG N/A Cams - Tighe Cams
• Adjustable Cam Pulleys
• Extensive Porting Inlet & Exhaust, chambers welded up
• Larger Valves
• Soiled Lifter & Double valve springs
• ARP Head, Crank, Big End and Flywheel Bolts

Clutch:
• 7.25inch AP Three Paddle Clutch, Solid Centre - just been rebuilt
• Custom Flywheel, Doweled to crank, (weights only 4.65kgs)
Tran-X Straight Cut Close Ratio Dog Box, Quaife shifter, Alum bellhousing, custom tailshaft

Intake:
• Jenvey 45/51 Tappered Trottle Bodies
• Cosworth intake Manifold
• Custom Ram tubes
• Pipercross Air filter

Exhaust:
• Gonzo Extractors
• Full Mandrel System

BRAKES

• Adjustable Pedal box

Front:
• Volvo Spot Callipers D3000 pads - New
• BMW E30 Vented/Slotted Discs - New
Rear:

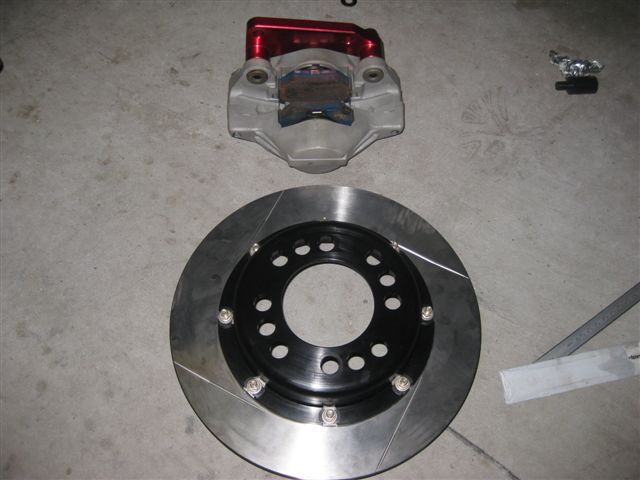

• Skyline R32 Callipers and Discs, Alum hats and floating disc - Race products

Diff:
• RN25 Toyota Hilux Diff - Race Products - 2.5 Camber Floating Hubs
• 5.2 Locked Centre

Suspension:

Rear:
• Leaf Springs reset and eyelets reversed
• Koni Adjustable Shocks
• Adjustable Watts Linkange
•
Front:
• Capri Struts
• Koni 2 way Adjustable Inserts - just been rebuilt
• Adjustable Spring Platforms
• Custom Adjustable Strut Tops - Eurospeed

Wheels:
• 15 x 8 SuperLite all round
• Hancook C71 Race Tyres

Paint:
• Acid Rush (Ford BA) – External
• Blue Print (Ford BA)– Roll Cage

Heaps of Extras not listed


Build Time: 12 Years

Cost: Ask the Wife

[Belly]

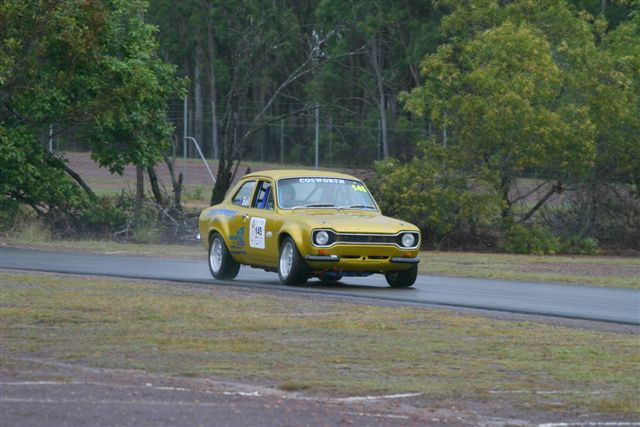

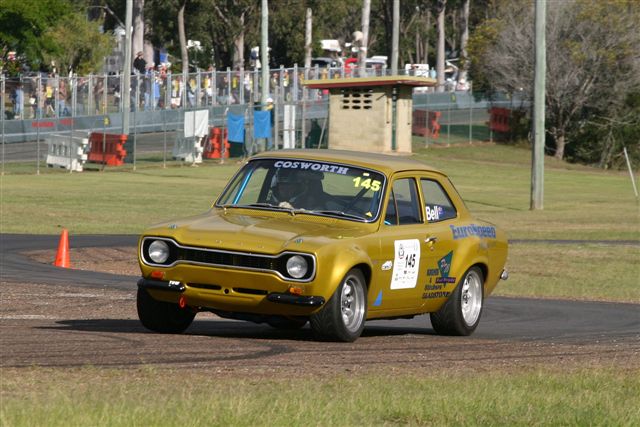

Some photo's from Maryborough, Wheel on Wide Bay 2007

[Belly]

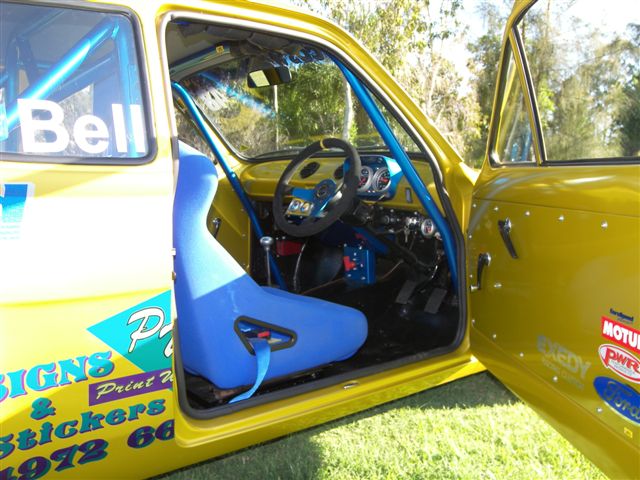

More Photo's

[fpv_escort1]

[Bruce Phillips]

[Paul F]

[keith]

[Mark Cogan]

[gen mk 1rs2000]

[gen mk 1rs2000]

c,mon belly we want some pics from bathurst

[Gary P.]

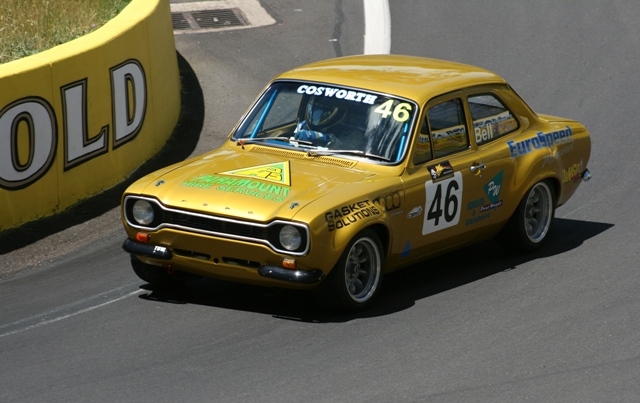

Belly stayed in Bathurst for a lazy game of golf yesterday. Here is the first photo of many.

[Damion Parkin]

[Belly]

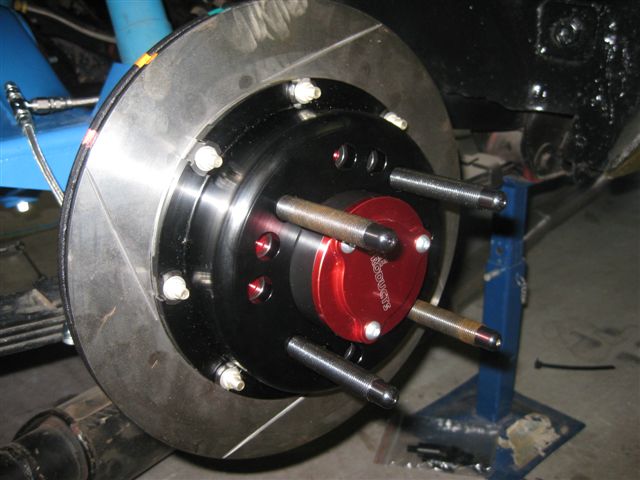

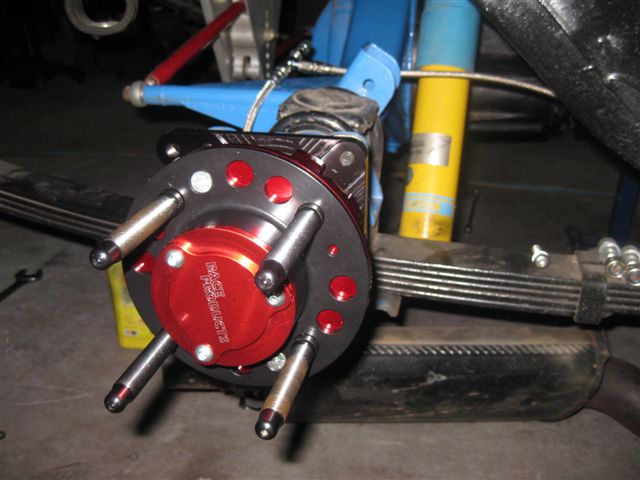

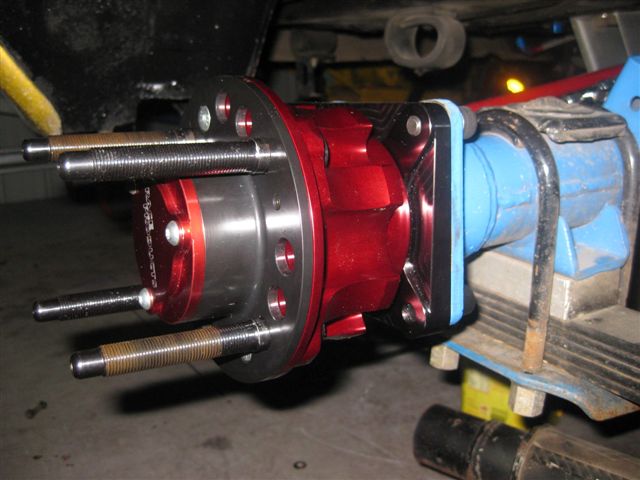

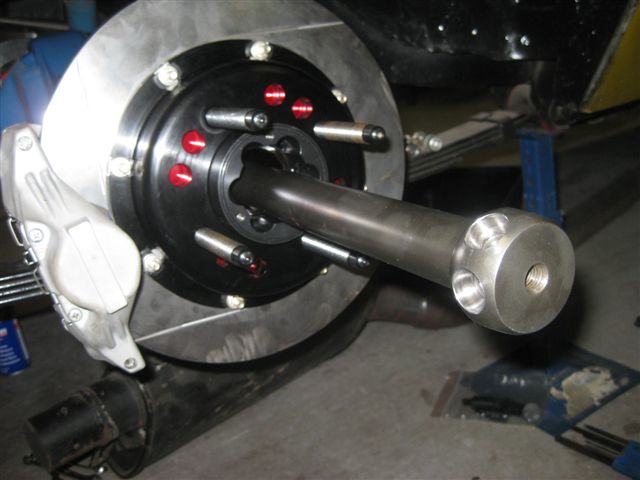

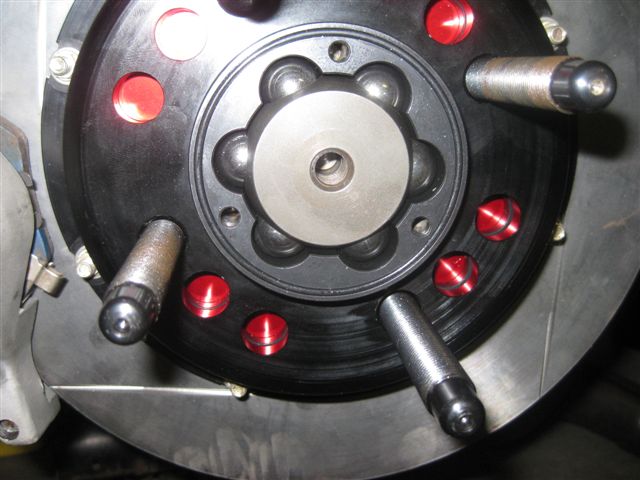

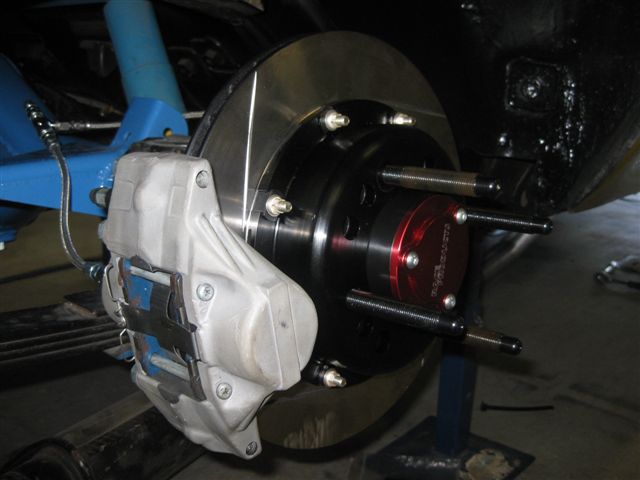

Ok just an update Spending some more money new 2.5 dec Camber full floating hubs from Race Products / Eruospeed

[Belly]

More toys

[Belly]

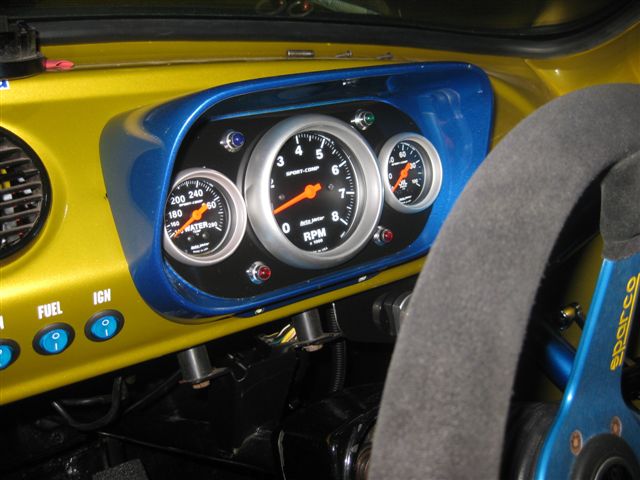

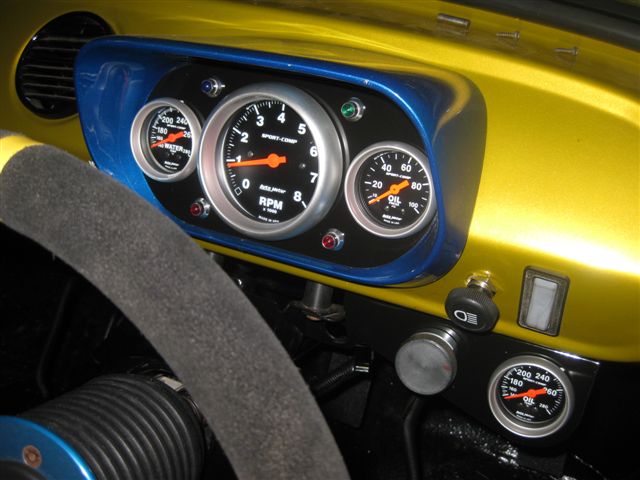

Changed the dash

[Belly]

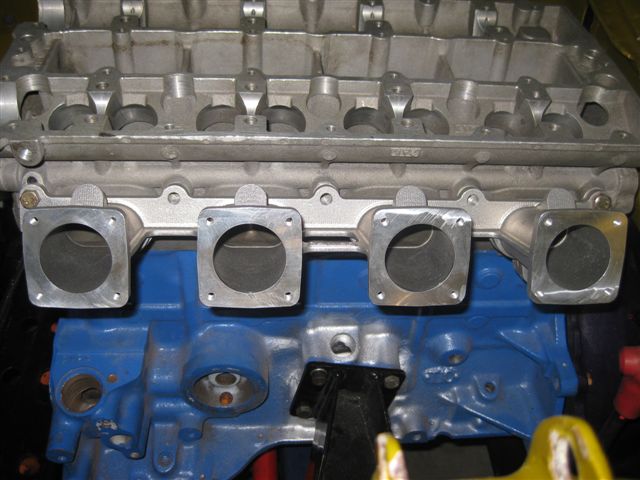

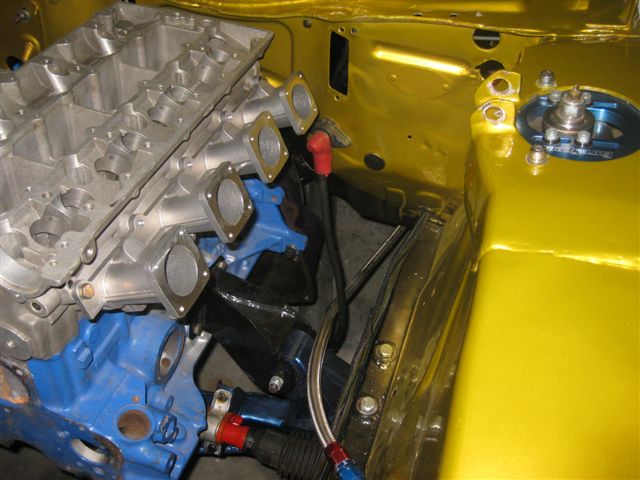

Fuel injection going on , have the manifold just waiting for the postman on the other parts , just setting everything up and then I will repaint the engine bay and weld up some holes that are not needed any more, rewire the car, Motec M400, waiting on new fuel pumps, reg and filters and new wheels on order, will update soon when I get some more toys

Belly

[gen mk 1rs2000]

it looks good belly ,
you should be able to kick danys arse with this new found power
but dont tell me you are waiting for the throttle bodies
to come back from the painters ??

[Tim V]

Wow, looks amazing. Can't wait to see it all together.

[MK1_Oz]

You have a nice rear end! Nissan 2 pots?

[Belly]

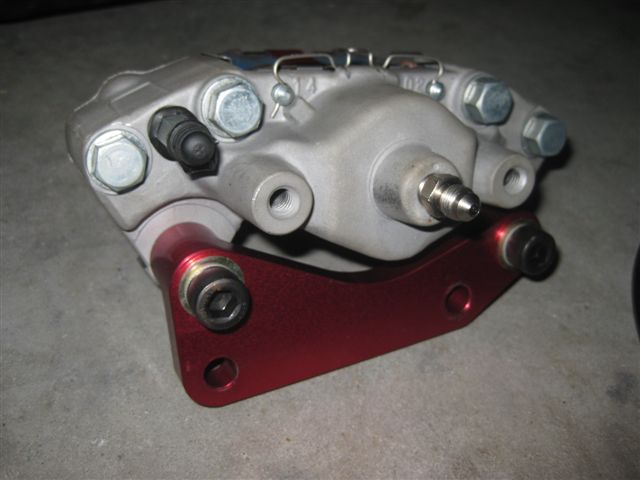

Yes it's the Nissan 2 pot callipers, if they pull up a Nissan Skyline they should be good for this little car
Going to put the nIssan 4 pots on the front, that's the next upgrade on the list
Belly
