adjustable coilover dimensions

[jpayne]

Does any one have any recomendations for setting the tube length and threaded tube height on I believe a capri strut (bolt on arms) to suit a Mk1 escort race car. And any Knowledge on what brand insert can be used to help lower the car to 100mm at the lowest point.
I am building another set of adjustables with enough travel to suit racing as the current set isn't low enough and it rides on the bump stops. Im guessing I need about 50mmm of travel and therefore need to shorten the strut tube by 50mm also and the threaded section should be about 10-20mm from the top of the tube.
I hope to use Bilsteins but if something else suits ill consider it.

Thanks

Justin p

[Roger Miller]

JP,

Do u have the threaded part yet?

[jpayne]

[jpayne]

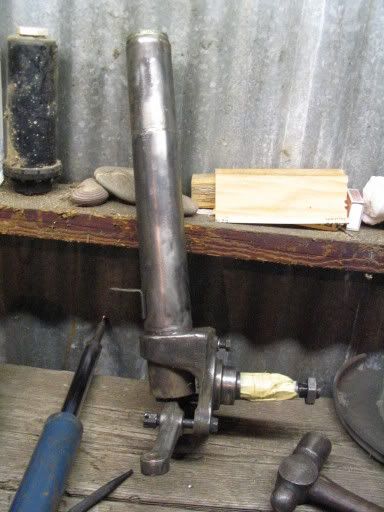

Attached is a photo of the strutt, can anyone identify more accurately what they are. and advise on what the shortest strut insert they have used in a competition situation and how long it was?

[Roger Miller]

JP,

Capri

[Roger Miller]

[jpayne]

[Roger Miller]

[Roger Miller]

Initial sketch of proceedings with Koni rx7 insert.



What needs doing.



Comparison of old and new.



MGs way of dealing with shortness.





What happens at top there.



Coil over kit.

[Daniel H]

[bsp]

Hi Roger,
Thanks for sharing these pics with us,im looking to do exactly the same thing
one question or make that 2!
what did you do for securing the top of the insert to the strut tube-i understand all that is needed is a sleeve made up to take up the movement sise to side?
if there is such a thing - what is the ideal length spring to run,does it depend on the rate or any other factors? im thinking of running 200mm 300lb/in springs
thanks
ryan

[Gary P.]

[Roger Miller]

[Roger Miller]

[Gary P.]

[jpayne]
