Rear trailing arms

by **MarkMan** » Tue Jan 02, 2007 3:34 pm

Was going to make a set of upper rear trailing arms for my MK1...has anyone tried this? or have any pics you can post/email me?

I was going to use shock absorber eyelets welded to HT bolts (one with reverse thread) and steel tube with the nut welded to each end. Sounds simple enough, but there isnt much room for error with the angles....

Are these also called radius arms? anyone sell kits for the MK1?

Cheers
MarkMan

by **Roger Miller** » Tue Jan 02, 2007 4:57 pm

http://works-escorts.spymac.com/images/ ... s-arms.pdf

by **Gary P.** » Tue Jan 02, 2007 9:31 pm

Mark, is your car a road or a track car? I had a set of these arms on my Mk1 Hillclimb/Sprint car and we discovered that they were binding up and causing the car to oversteer. They do a really good job of stopping axle tramp and would probably feel good on a road car.

by **MarkMan** » Wed Jan 03, 2007 8:58 am

by **Gary P.** » Wed Jan 03, 2007 7:52 pm

The car handled much better without the arms at the hillclimb but broke an axle on the very next run due to ......axle tramp! This was mostly solved by fitting a set of "half rebound springs". The car would obviously benefit from a set of arms of some description but nobody seems to have come up with good conversion. If only we could put boxes in the floor!!!!

by **Roger Miller** » Wed Jan 03, 2007 7:55 pm

by **Gary P.** » Wed Jan 03, 2007 8:06 pm

by **Danny M** » Thu Jan 04, 2007 8:51 am

by **Gary P.** » Thu Jan 04, 2007 6:09 pm

by **Danny M** » Thu Jan 04, 2007 8:41 pm

by **MarkMan** » Fri Jan 05, 2007 1:21 pm

by **Danny M** » Fri Jan 05, 2007 5:33 pm

by **Gary P.** » Fri Jan 05, 2007 5:58 pm

by **johnw** » Thu Jan 11, 2007 7:25 am

Hi All,
Am new to this site, wish I had found it 12 months ago when I first started my build, better late than never I guess. Have built a Mk1 2 door (1970) with Mk2 2 litre running gear and engine. Using it for Hillclimbs and Bitumen Sprints but looking to Log Book Improved Production and travel to Queensland Raceway and/or Morgan Park, closest circuits to home (Townsville). car has standard suspension at present but I am currentlly modifying it during our off season, so am reading all I can on what you more experienced fella's are doing. On the subject of rear axle location has any body tried Caltracs.

by **Roger Miller** » Thu Jan 11, 2007 6:09 pm

http://www.calvertracing.com/info/info.htm

by **Roger Miller** » Thu Jan 11, 2007 6:26 pm

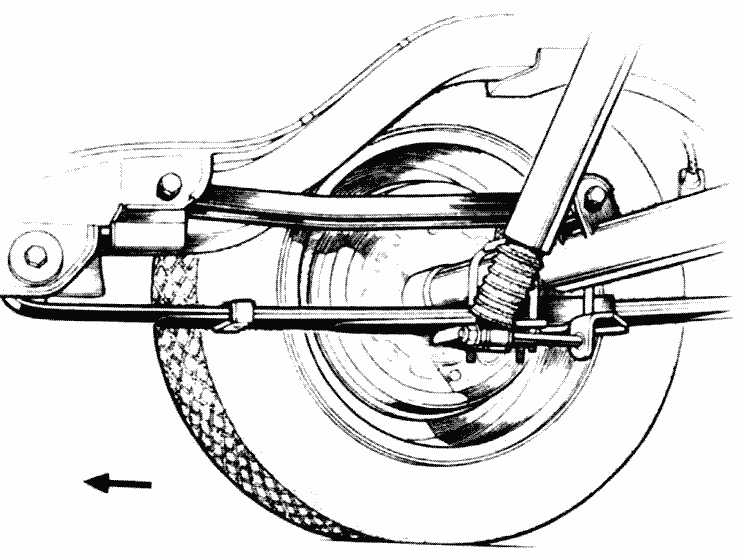

Hopefully, NOW, we can all see how this is not kind to suspension travel.

by **Roger Miller** » Sun Jan 14, 2007 7:04 pm

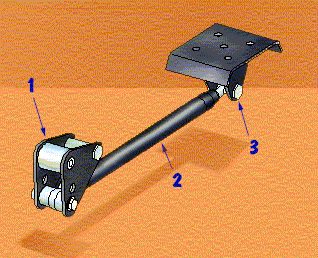

This would work well.

by **Roger Miller** » Sun Jan 14, 2007 7:07 pm

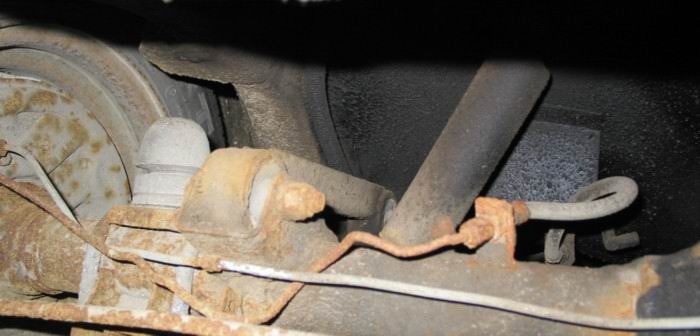

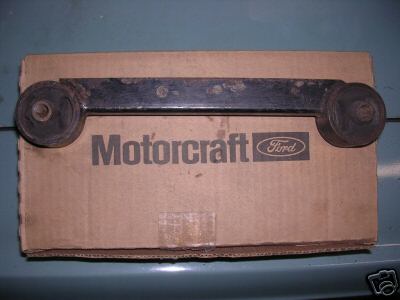

Note the voids in these Capri Mk1, factory, arm bushes.

This would allow some fore aft movement, of suspension.

by **MarkMan** » Tue Jan 16, 2007 9:18 pm

Roger, Those lower trailing arms are the closest thing ive seen in any pic to the correct geometry.......thanks for the pic....
The Uppers.....forget it

Ive embarked on making my own....get the angles correct so it wont bind during suspension travell, and it looks like ill be able to do it. (after sitting under the car for half an hour with a lenght of tubing, and removing the rear twice.....)

I will post pic's once I'm done....incl whats left of the old sway bar mounts (nearly fully removed) and the new swar bar mounts that are out of the way of the upper arms!!!

Thanks for the posts everyone!
Cheers
MarkMan

by **Roger Miller** » Sat Jan 20, 2007 7:55 pm

Rear trailing arms

Rear trailing arms
