Seat Bar Bolt

[MK1_Oz]

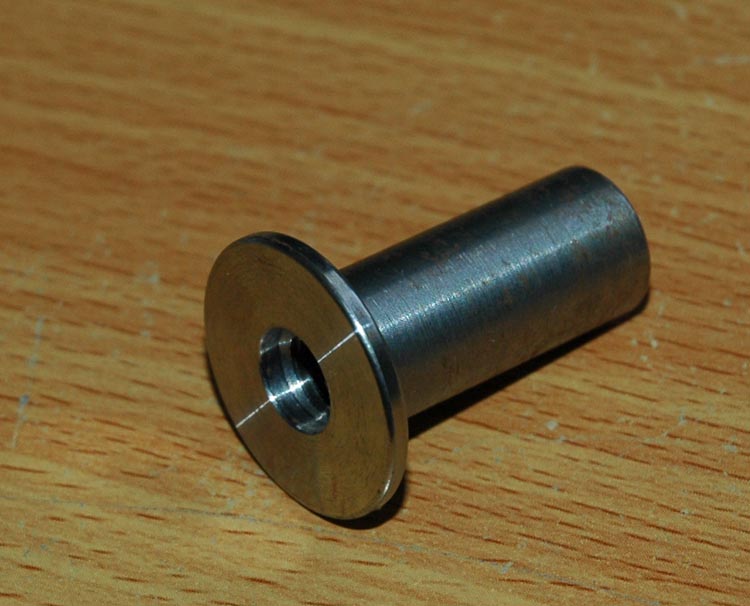

Dunno what you would call this other than a bolt but where could I get some from in Australia? I tried the Coventry Fasteners website but they have nothing. Dont really know what I am asking for (ie name) so finding it hard to search.

Got any ideas??

[Momus]

MK1 oz, at this stage of your build it looks like you need to find someone who has a lathe and does jobbing work.
If he has a quill type milling machine as well, all the better.

Your build is moderately ambitious

You are going to need all sorts of spacers, fittings, gubbins and what-nots and made from steel and aluminium and perhaps hard plastic. Things are going to need to be modified.

The fitting in the picture, if it has a female thread, could be called a tube bush, a weld in spacer, a sleeve nut or a ferrule and is a special part. It has probably been made on a CNC repetition machine.

It looks like it is from mild steel. Material to hand, 4 of those would take a competent operator about half an hour to make.

A graph paper book for doing scaled and dimensioned sketches is invaluable and usually quicker than a computer.
A machinist will prefer to work to a drawing.

[MK1_Oz]

[Roger Miller]

What is it ?

Where does it go ??

We can advise alternatives !

[MK1_Oz]

The Gartrac system uses square bar (I know your not a fan of that!) with these dooflicky things welded in for the mounting bolts.

[jpayne]

OZ,

instead of that custom part how about welding a crush tube into the square tube and use a longer bolt through the seat bar to secure the seat. much easier than having apart machined or waiting for more from the UK.
Cheers,

JP

PS: almost every part I purchased for my mild build needed modifying or alteration to suit the purpose Ihad for it. You will needa mate with a lathe etc.
